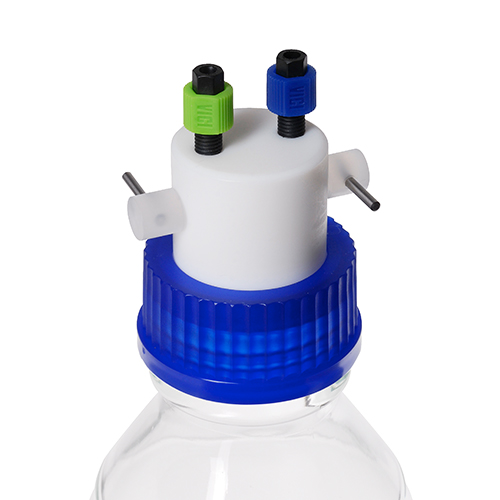

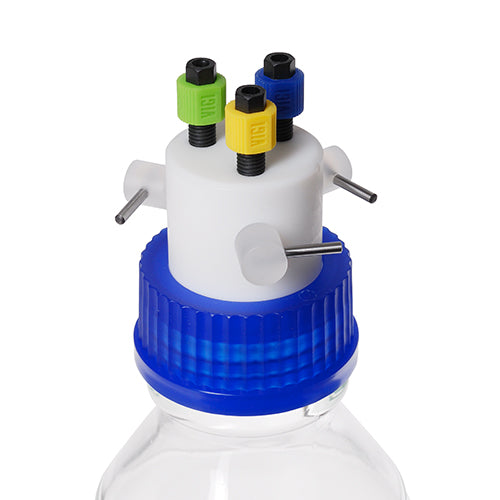

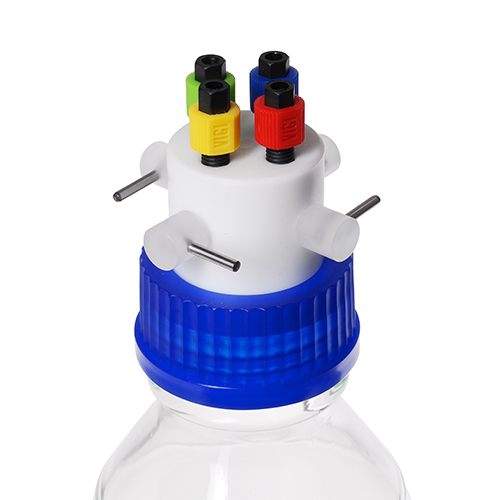

Safety Cap Kits – GL45 Threads

Part Number #JR-S-11111

$ 184.80 Sale Save
Number of Ports
Bottle size

In addition to a GL45 safety cap with fittings, this kit offers a safety bottle (1 or 2 liters), PFA tubing, and a mobile phase filter.

Order the air inlet filter separately.


Safety Cap Kit Includes:

  • 1 safety cap, GL45 thread, with fittings
  • 1 safety-coated glass bottle (option of 1L or 2L)
  • 3 meters of PFA tubing
  • 1 No-Met mobile phase filter, 5 µm
  • Additional nuts and ferrules for the bottom side

TECH TIP

PFA tubing allows less re-gassing of the mobile phase, which is why VICI Jour selected it for the safety cap kit.


Connections: 1/4-28


Materials:

Part Material
Closure Polypropylene
Insert PTFE
Stopcock CTFE
O-ring EPDM (alternative: FEP-coated)
Nuts PPS
Ferrules ETFE
Sleeves Polypropylene
Bottle Borosilicate 3.3, safety coated
Filter

Polyethylene


More information about the chemical resistance of these materials.

Chemical Resistance

Description Qty/pkg Part Number
FEP-coated O-ring, GL45 1 JR-S-40008
1/4-28 flangeless nuts, PPS 1/16" OD 10 JR-55070-10
1/8" OD 10 JR-55071-10
Inverted ferrules, ETFE 10 JR-041-10
1/8" OD 10 JR-051-10
Color-Sleeve adapters, 12 colors (2 each) 24 JR-5808X-24
PFA tubing, 1/8" x 1.59 mm x 3m 1 JR-T-4003-M3

No-Met biocompatible mobile phase filter, economy

slip-on connection, 5 µm pore

1 JR-32174
1/4-28 plug, PEEK 1 JR-409
Safety-coated bottle with solid cap 1L 1 JR-9000-0005
Safety-coated bottle with solid cap 2L 1 JR-9000-0010

Spare Parts
