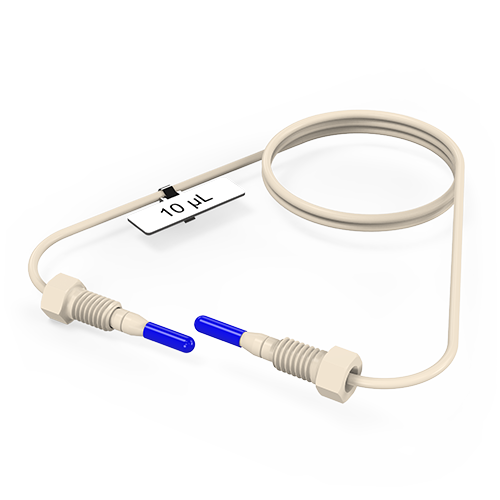

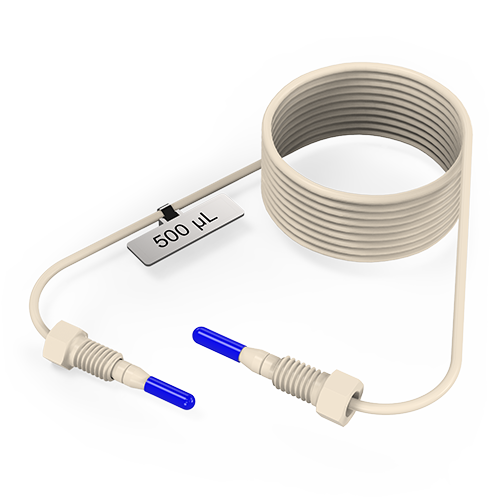

PEEK Loops for Valco® Valves

Part Number #JR-SLV-75-1

$ 34.00 Sale Save

For use with all Valco W and UW type valves, VICI Jour PEEK sample loops are available in a wide range of volumes. Tubing and fittings are made from PEEK, a mechanically strong, chemically inert polymer ideal for HPLC applications.

Our PEEK sample loops contain no metals or other extractable compounds, which prevents foreign materials from being introduced into the system. Softener-free polyethylene caps are used to avoid contamination of the tubing. PEEK hex-head nuts and PEEK ferrules provide reliable connections while preventing the tube from twisting.

PEEK sample loops are particularly well suited for separations involving proteins, peptides, nucleic acids, or other samples of biological origin, as well as in ion chromatography (IC) systems where metal traces may interact with ionic samples or release transition metals that deactivate ion exchange columns.

Other sample sizes are available on request. Please contact your distributor or VICI Jour directly.

TECH TIP

Using tubing with a tighter ID tolerance will minimize the tolerance of the loop volume.

Material:

Part Material
Loops PEEK
Nuts PEEK
Ferrules PEEK
Caps Polyethylene

±0.025 mm (.001")

Refer to Chemical Resistance and Properties of Polymers for more information.

Description Qty/pkg Product No.
PEEK nuts for use with double ferrules,
1/16" hex head long, 10-32
5 JR-5510-5
PEEK single ferrules, 1/16"
(Use 2 per nut. See illustration above.)
5 JR-5005-5

Spare Parts
