Part Number #JR-064

VICI Jour

$ 12.50 Sale • Save
Bore
Type

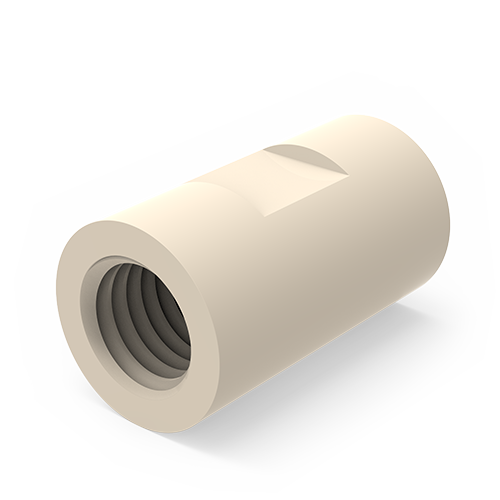

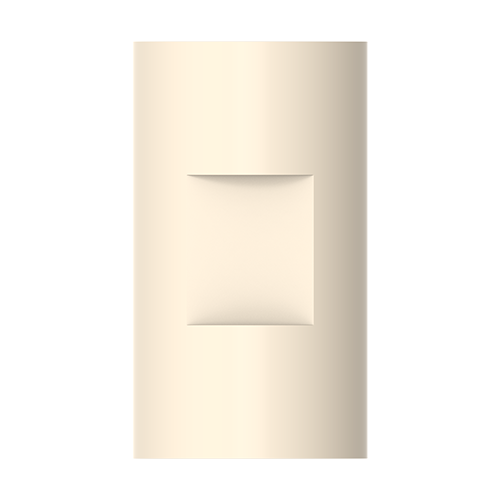

For quick, easy, and reliable connection of two pieces of 1/16" or 1/8" OD low-pressure solvent lines. Low dead volume and flat-bottomed 1/4-28 fitting details. Low Pressure PEEK unions are completely inert and biocompatible and can be used with color-coded adapters for easy solvent line identification.

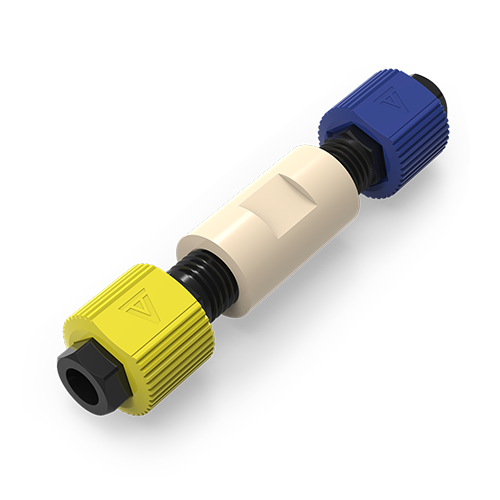

VICI Jour Low Pressure PEEK unions are available as the body only, or complete with fittings. A union with fittings includes:

  • PEEK low-pressure union
  • 2 PPS flangeless hex-head nuts
  • 2 ETFE inverted ferrules
  • 2 Color-Sleeve adapters

For 1/16" and 1/8" OD tubing with flangeless connections


Material
Body PEEK
Nuts PPS

Ferrules

 ETFE

Threads: 1/4-28 threads


Pressure rating: (varies with tubing material and ID)

OD Bar PSI
1/16" 105 1500
1/8" 35 500


TECH TIPS

  • Use our impermeable tubing to avoid gas diffusion in the solvent lines.
  • While PEEK unions are typically used with inverted ferrules, collapsible ferrules or flanged connections can also be used.

Properties of Polymers


Description Tubing OD Qty/pkg Product No.
PPS flangeless nuts 1/16" 10 JR-55070-10
1/8" 10 JR-55071-10
Inverted ETFE ferrules 1/16" 10 JR-041-10
1/8" 10 JR-051-10
